This page hosts publicly-available files related to TheVan Keyboards and Trash Man keyboards as well as compatible community-designed projects. Included are DXF files for cutting plates, STL files for 3D printing cases and keycaps, and anything else that we come across and figure is worth putting here.
None of the links to external pages are affiliate links. We don't make any money off of this. If you want to suggest alternate links to parts/accessories feel free to send them to the wiki gurus and we will update this page.
Looking for a plate file? Look no further! www.minivanplate.xyz likely has the answer. Just pick your case and PCB to find a compatible plate file.
These parts are common across many cases. Check the section below for your specific case to ensure you are selecting the correct parts.
| Size | Length | Head | Color | Link |
|---|---|---|---|---|
| M2 | 4mm | Philips | Silver | Amazon |
| M2 | 4mm | Philips | Black | Amazon |
| M2 | 4mm | Button Hex | Black | Amazon |
| M2 | 6mm | Philips | Silver | Amazon |
| M2 | 6mm | Philips | Black | Amazon |
| M2 | 6mm | Button Hex | Black | Amazon |
| M2 | 6mm | Socket Hex | Black | Amazon |
| M2.5 | 4mm | Philips | Silver | Amazon |
| M2.5 | 4mm | Button Hex | Black | Amazon |
| M3 | 12mm | Socket Hex | Silver | Amazon |
| M3 | 14mm | Socket Hex | Silver | Amazon |
| M4 | 4mm | Low Profile Hex | Black | McMaster-Carr |
| Size | Material | Link |
|---|---|---|
| 3/4 inch flat | Cork | Amazon |
| 3/4 inch flat | Cork | Amazon |
| 3/4 inch flat | Silicone | Amazon |
| 3/4 inch cone | Aluminum | Amazon |
| PrimeKB case feet | Silicone | PrimeKB |
| Part | Link |
|---|---|
| USB-C Unified Daughterboard | CannonKeys |
| SK6812 RGB LED | Adafruit |
| WS2812B RGB LED | Keeb.io |
| Brass heat set inserts for 3D printed cases | Amazon |
Order 3D prints from Shapeways:

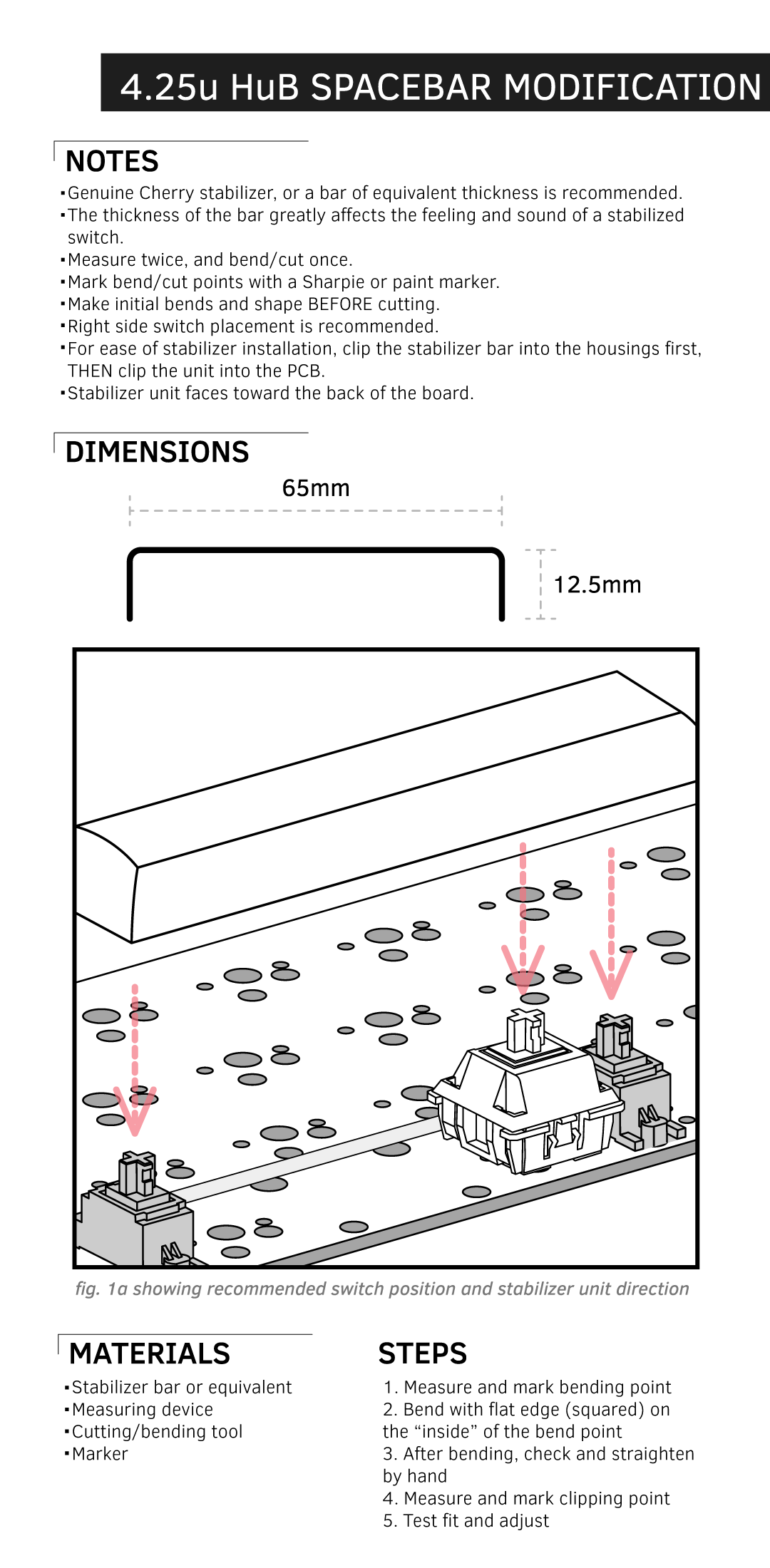

CNC-bent 4.25u stabilizer wire: https://trashman.club/page/425-stab
Files to print your own:
Extras:
Campiander plates are compaitble with Campsite, Coriander, Barca, Carpool, Hubris, and Pomelo
Check the Campiander section for more Coriander-compatible plates
External links:
External links:
Coriander plates are compatible with Coriander, Barca, Carpool, Hubris, and Pomelo
Check the Campiander section for more Coriander-compatible plates
Ketch is compatible with MiniVan, JetVan, and many other layouts. Check the KLE for full compatibility.
External links:
DXF plate files for R3 V4N4G0N cases do not contain traces or pads for RGB indicator LEDs. R3 plates produced with these files will only be compatible with the through-hole indicator LEDs on the PCB
The R3 FR4 plate uses SK6812 or WS2812B RGB LEDs. Links to purchase individual LEDs are in the case parts section above.
