BigBoi is a prototype MiniVan-compatible PCB designed by Trash Man to test big spacebar layouts. It was never sold as part of a group buy and only a handful of PCBs were made.
¶ Design
| Designer | Trash Man |
|---|---|
| Compatibility | MiniVan |
| Firmware | Trash Configurator |
| Layouts | KLE link |
| Plate files | DXFs on the Files page |
| Switches | Soldered MX |
| Connection | Integrated USB-C |
| Controller | ATmega32u4 |
Drawing inspiration from TransitVan, BigBoi was created to support 9u and 9.75u spacebars as well as a prototype ortholinear layout in a standard MiniVan case. A traditional grid of 1u keys will not fit in a 12.75u-wide MiniVan case without some trickery, leading to a compromise in the ortholinear layout where the 4 keys in the rightmost column are all 1.75u wide. The big spacebar layouts are designed to use 3D printed spacebars made in HuB profile. There are two sets of holes for PCB-mount 7u stabilizers for the large spacebars. The board uses USB C for connectivity with the port located in the upper-right corner to ensure compatibility with MiniVan cases. All switches on the board are in the south-facing orientation. There are no holes for in-switch LEDs and there no SMD LEDs on the board.
¶ Layout
BigBoi supports three layouts that all use 9u or 9.75u spacebars. The non-ortho layouts are based on the MiniVan layout with modified bottom rows. A 7u spacebar can be installed on any of the layouts to create additional WKL layouts not shown below.

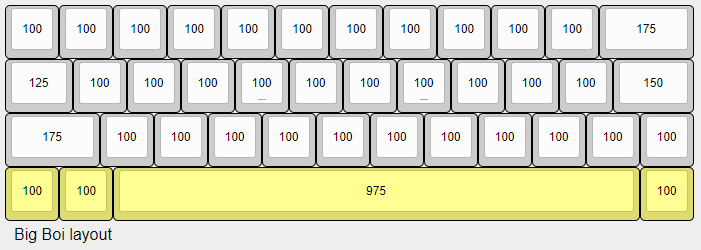

- Standard - 9.75u spacebar surrounded by 3 1u keys

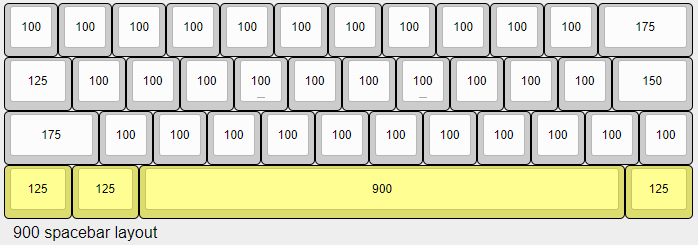

- 900 spacebar - 9u spacebar surrounded by 3 1.25u keys
- Ortholinear - The alphas section of the board is converted to an 11x3 grid of 1u keys. The right column of the board contains four 1.75u keys in a vertical line. The bottom row is comprised of two 1u keys and a 9.75u spacebar followed by the 1.75u key
¶ Revisions
There has only been a single revision of the BigBoi PCB that was developed as a prototype. The PCB is covered in a green solder mask with white silkscreen. The front of the board is covered in a wavy design while the back includes the name of the board, revision number, and the text "Designed by Trash Man".
¶ Rev 1.0
