Extras from the Hubris group buy are on sale for $170 at P3DStore.com. Cases purchased before November 29 will include a free Minisub PCB.
Open source files for Hubris can be found on GitHub: https://github.com/rainkeebs/hubris-mv-case
Hubris is an open source case for USB-C based Minivan-compatible PCBs created by community member Rain.

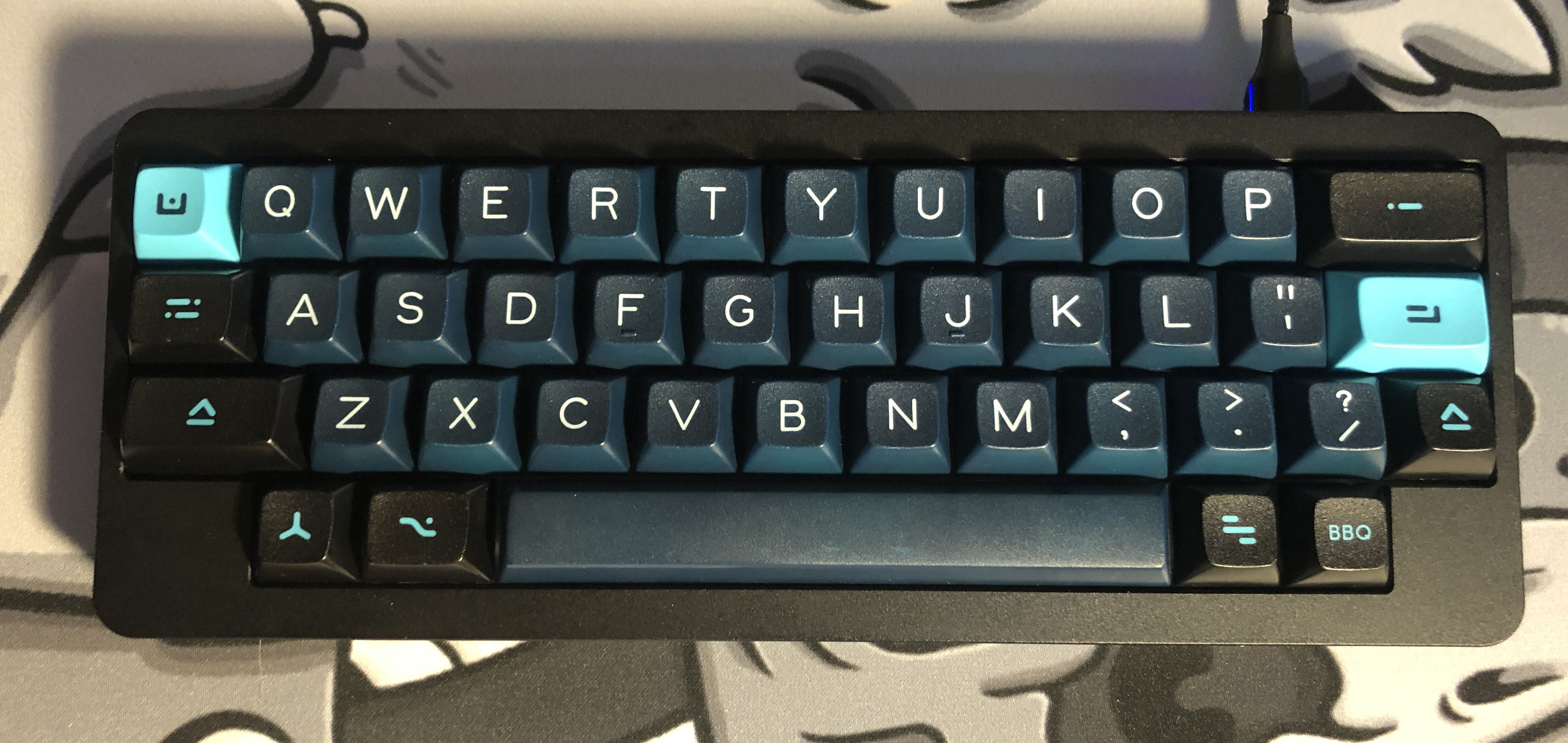

50 black aluminum Hubris cases were manufactured sold for $165 each in April 2022 by P3DStore.com.
A second round of Hubris cases were sold during a group buy in September 2022. Cases started at $150 for basic black anodized finish. More expensive colorful cerakote finishes were available for varying prices($15-100).
Discussion around the design of Hubris can be found in the #hubris channel in Rainkeebs' Discord server.
ΒΆ Design
Check the MiniVan Compatibility Matrix for case compatibility
Hubris is a two-part top mount MiniVan case with optional corner blockers. There are four top pieces available in the repo to enable compatibility with various PCBs:
- a standard/universal top with no blockers
- an HHKB-inspired top with asymmetrical 1.25u/1u bottom corner blockers
- a modified
HHKB1utop with symmetrical 1u blockers in both bottom corners - a standard/universal top with no blockers and larger screw holes to accept heat set threaded inserts
There are two bottom pieces available as well - one with a Rainkeebs cloud logo and a blank option with no logo. The bottom piece includes a 5-degree typing angle. The standard case requires ten M2.5x4mm screws for assembly. The heatset top may require different screws depending on the inserts you install.
Hubris uses Coriander switch plates.
DXF files for switch plates and links to case parts are on the Files page
Hubris is designed for 3D printing and CNC machining with STL and STEP files are available for all case pieces.
